Trip Around The World

Quiltville Custom Quilting
http://www.quiltville.com

Trip Around The World
~Helping Katrina~
(click here for printer-friendly version)

Quilt Size approx 72"X85"

In the aftermath of Hurricane Katrina, so many of us are digging in our hands and sharing our hearts by making quilts for the displaced survivors who have lost their homes, their family, their friends, their everything. I belong to several email lists who are encouraging each other to reach out and share love and hope. Many quilts have been called for, and we are answering that call! I recieved an email from a quilter who stumbled upon the "Streak of Sunshine" child's charity quilt that is on this site. She wrote that the Red Cross is asking for twin sized quilts and could she just make four of the streak of sunshine quilts and then put them together for a trip around the world? I did some math figuring and realised that the quilt would be way bigger than the needs, the quilt dimensions just didn't come out right for her to quadruple that quilt, but the idea was there.

I played with the math a bit, and found that if I made the strips a bit narrower in the panels, and made the panels with 9 strips instead of 8, that the quilt worked up just right with only having to make 4 panels....and there was almost no waste! What little bit there was I trimmed and inserted in the backing. I'll get to that pic later when I actually post a pic of the finished quilt. I also wanted to be sure, in an effort to not duplicate someone else's instructions, that there was not already a strip pieced trip around the world quilt pattern out there on the net somewhere as it is. I know there are patterns in BOOKS.....they've been around for ages, but what about directions on the net? How funny to find when I put "trip around the world pattern" in the search engine that I came up with links to my own "Scrappy Trips" pattern and references other people had made to the same! I found ONE pattern that had you cut actual individual squares and stack them in piles to piece the trip around the world pattern (ACCCKKK!!) But NO trip around the world directions from strips to be found on the net. So now there is!

The directions are for TWIN SIZE only, and I don't anticipate posting other sizes on this page.

Cutting:

This quilt will work with either 5 fabrics for the center:

(8) 4" wide strips each of four different fabrics shown to the left ,cut selvege to selvege.
(4) 4" strips of the 5th fabric shown on the right,cut selvege to selvege

OR:

(4) 4" strips each of 9 different fabrics. I was shooting for a center that measured about 60X70 and this is how the math broke down.

Yardage conversion for those who need to know!

Five fabric version:

8 X 4 =32" I'd buy 1 yard each of the first 4 fabrics. (Some leftovers for the scraps is ALWAYS good!)

The 5th fabric you only need 4 strips...4X4 = 16" or approx 1/2 yard.

You will need about 1/2 yard to do the 2" inner border and 1 1/4 yrds to do the outer border.

Nine fabric version:
1/2 yard of 9 different fabrics for quilt center, 1/2 yard for inner border. 1 1/4 yards for outer border.

I know the color looks off between these two photos, but the sun started to come through the window where I was laying them out! Arrange your 4 strips in a manner you find pleasing. Stitch 8 identical panels this way. I save the pressing until after the next step. If you look at the second picture, you will see I have inserted the 9th strip between two identical panels. You want to be sure the panels read in the same order left to right.... and that you don't have the same strip on the far left as on the far right.

If you are using the 9 different strips for your panels, just sew all 9 strips in an order that is pleasing to you. All four panels must be identical to each other whether you are using the 5 fabric version or the 9 fabric version.

Here I am pressing the seams. Every other strip will have the seams pressed towards the inside on both sides of the strip, the other strips will have the seams pressed away from them. This is crucial for the next sewing step, so the seams will butt up against each other instead of going in the same direction. I did find that using 9 strips in the panel (an odd number) does make you have to flip ONE seam when sewing sub cuts together, but....oh well...

After pressing, take and fold your panels in half by bringing the two edge strips right sides together. Stitch down this side turning the panels into "tubes".

Take your panel-tubes to the cutting mat. Fold the tube carefully as shown, and trim one end. Cut the tube into 4" sub cuts. You should get 10 sub cuts per panel. For right now keep them in 4 piles of 8 units, and set the extras aside. They will be used later.

Take one of your pieced units...it will be all connected into a circle-loop. With your seam ripper, simply slip through about every 3rd stitch, and open up the circle into one length of pieced squares. Our first two pieced panels are going to be identical to each other, and they are both going to stair step DOWN. Take a second circle-loop, and to be sure you are opening it in the right place, arrange it so that you can tell it would lay identical to the one before it. When you find that the placement matches, stair step the top square down one, and open the loop between the new top square and what is now the bottom square. What was once the top of the first unit, is now the bottom of the second!

Stitch these two units together in a 1/4" seam. Press towards the second strip. Take another loop and lay it out next to the second strip, finding where it matches identically, and then stair step it "down" one. Repeat with all 8 units until you have one panel. Repeat for the second panel...these two panels are IDENTICAL to each other.

Here is one panel looking really good, coming together!

And the two identical "down hill" panels.

Now you are going to repeat the process for the "up hill" panels, but first before we start, we need to know that they are exactly "mirror image" of the "down hill" panels.

To get my "up hill" panels started, I laid out one of the down hill panels on the floor, left a space (the final strips will go here in between the panels) and then opened one of the loops EXACTLY as the last strip I added to the down hill panels. See how it is exactly the same?

Then...because I am going to be stair stepping UP...I took one of the pieced loops...laid it against the first strip I had just opened...found where it matched exactly...and then stair stepped UP one to find where I needed to unpick the seam. Once I had these two right, I knew I could continue for the rest of the up hill panel with no problems, and then finish the SECOND up hill panel identical to the first.

My two identical up hill panels!

Now the magic starts!

I want you to think of this quilt as two IDENTICAL HALVES. Bottom half, and top half. If we make two identical bottom halves, and flip one over to be on the top, it will perfectly mirror image the bottom. So let's make the bottom half!

One down hill panel, and one up hill panel with a space in between. Remember those extra cuts we set aside? this is where they come in!

Take a loop, lay it in between the panels, aligning it with the last strip on the down hill panel. Find where it is exactly the same as the down hill panel. You are also going to stair step this one DOWN. Open the strip where you need to. You can see the diamond pattern now! Stitch the center strip to the downhill panel and press towards the strip. Then stitch the up hill panel to the other side. Press.

Repeat this so you have TWO quilt halves, just like this....identical!

Here are the two halves mirror imaging each other. I don't have the center strip sewn into the top half yet,
I was too eager to see how it was going to look so I laid it out first!

Here we go! Looking great! Now, you are going to take TWO of the left over pieced strips...working from left to right, find where this strip needs to open up. This one will take you all the way to the center square. Open it up and lay it there. Take the second strip. This one is going to go in reverse order....mirror imaging the first trip you laid out. Or, if you find it easier, you can follow the pattern to the outside edge of the quilt to open it too. It is going to be one square longer than you need it to be, so you will remove one square at the very end. Stitch these two opened loops into one length. Stitch them between the quilt halves. Press the top well! YOU DID IT!!

I got to this point and still had 4 circle-loop-strips left! The quilt center was only 66" long at this point, so I thought I could open the loops, and add one more row to the top and the bottom. In the picture above you can see how I opened the strips, stair-stepping them the way they needed just as I did the center strip that joined the halves. On the far right of the pic you can see the extra squares that I removed. Stitch the strip halves together, and add one to the top of the quilt, and one to the bottom! The top now measures about 59.5" X 73".

I added a 2" cut inner border and a 5" cut outer border making the quilt top finish at 72"X85"

You may ask now...well, couldn't I just have made the panels with 10 strips instead of 9 to get the same thing? Yes...you could have....but then you would have had MORE loops left over.(about 6 of them!) What would you do with those? I admit that I am deeply drawn to yardage conservation, and this left me with only the tail ends of the panels...they were too narrow to cut to 4"...so I trimmed them 3.5" and stitched them into one long length and inserted it into the backing! This made the backing just long enough for pinning into the quilting machine, leaving room for the side clamps. Makes the back interesting too!

My next goal is to make one using NINE different fabrics!

I hope this encourages you to make a Trip Around the World quilt if you haven't in the past, and make one to donate too :c)

I'd be happy to display your pics here if you use this pattern!

Sally W. Set the following, along with this note:
"Hi Bonnie, I thought you'd like to see a quilt that I made using your technique. I used 9 different fabrics and added folded triangles in the corners of 72 squares to hold 4x6 actual photographs. I too searched for a TAW using the bargello technique and yours was the only one I could find on the entire internet. Thank You!!

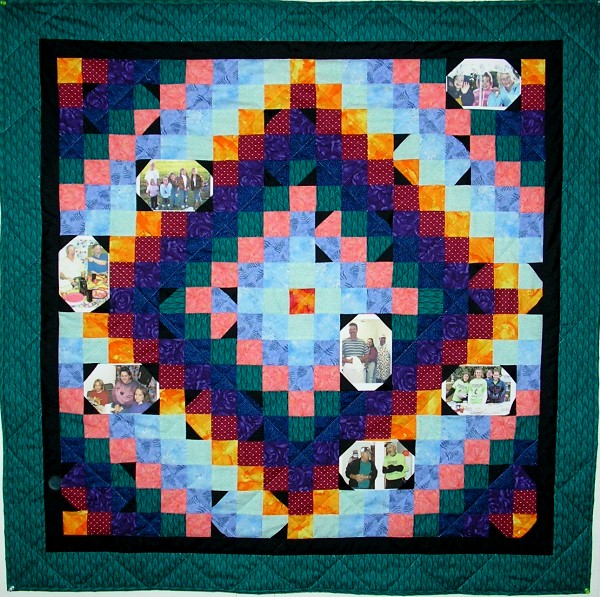

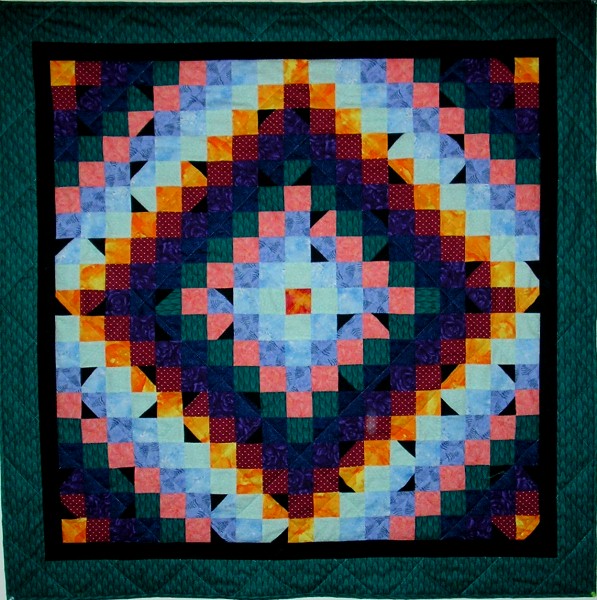

Quilt without photos! Quilt with photos! Great job Sally!!

Adele S sent a pic of her trip around the world!

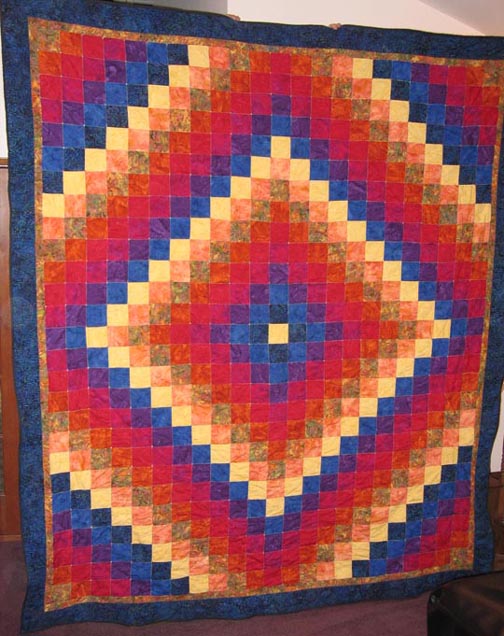

Leonora M used bright vibrant jewel tones for her quilt!

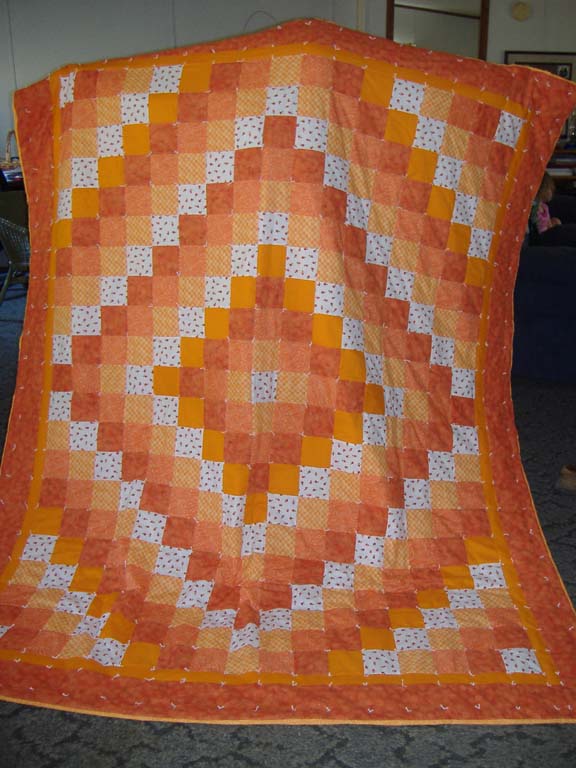

Cara C made hers in oranges and tied it!

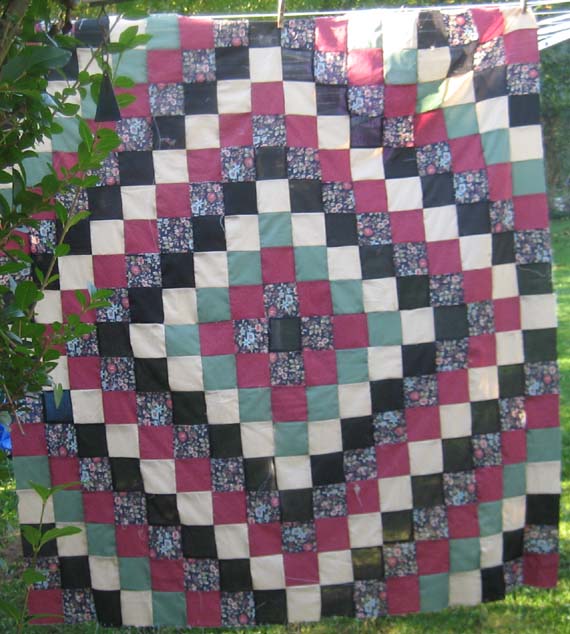

Loretta sent a pic of her top!
